SL25 - Reveal Fixed Flood Barrier (T08)
The SL25 barrier needs to sit on a flat solid threshold, ideally float finish concrete or a steel plate, it has a tolerance of +/- 2mm.
All orders include pressing tools and allen key for operation and sealant and fixings for installation - PLEASE NOTE THAT FIXINGS ARE FOR FULL BRICK OR CONCRETE ONLY - Also included will be 1 set of extracting tools per barrier type, per order.
Your barrier will be manufactured to the clear width measurement provided. Not sure what you need? Measuring your opening only takes a tape measure. View our Barrier Ordering Guide or contact us on 01282 790015 if you'd like help confirming the correct barrier size for your needs.
Description
Description

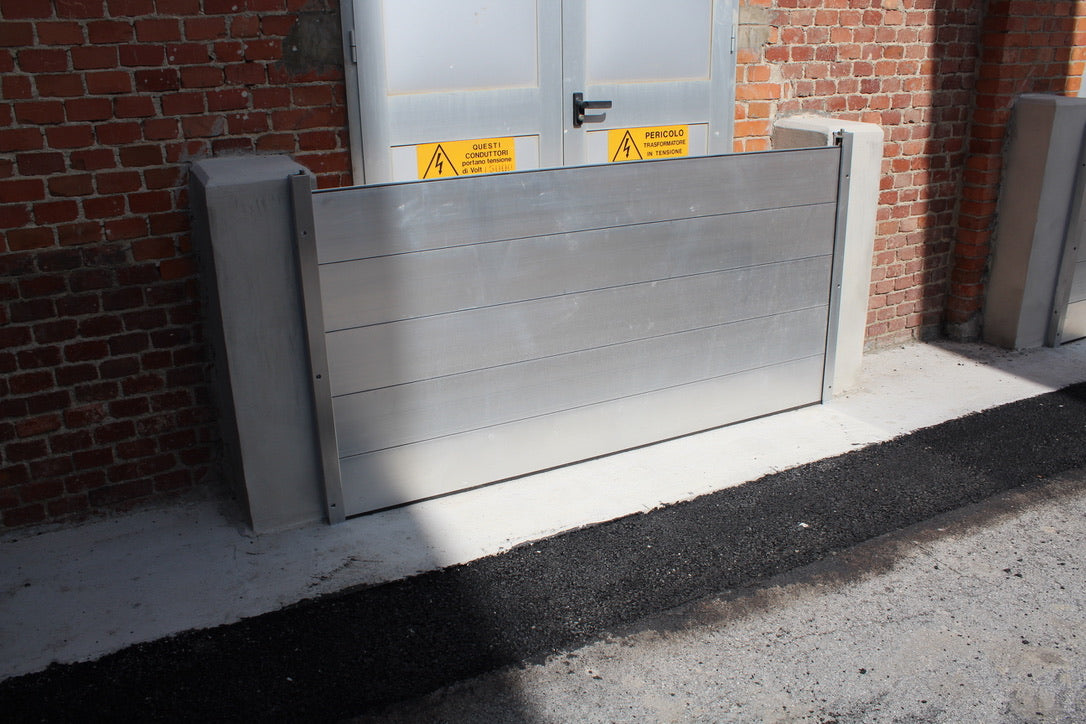

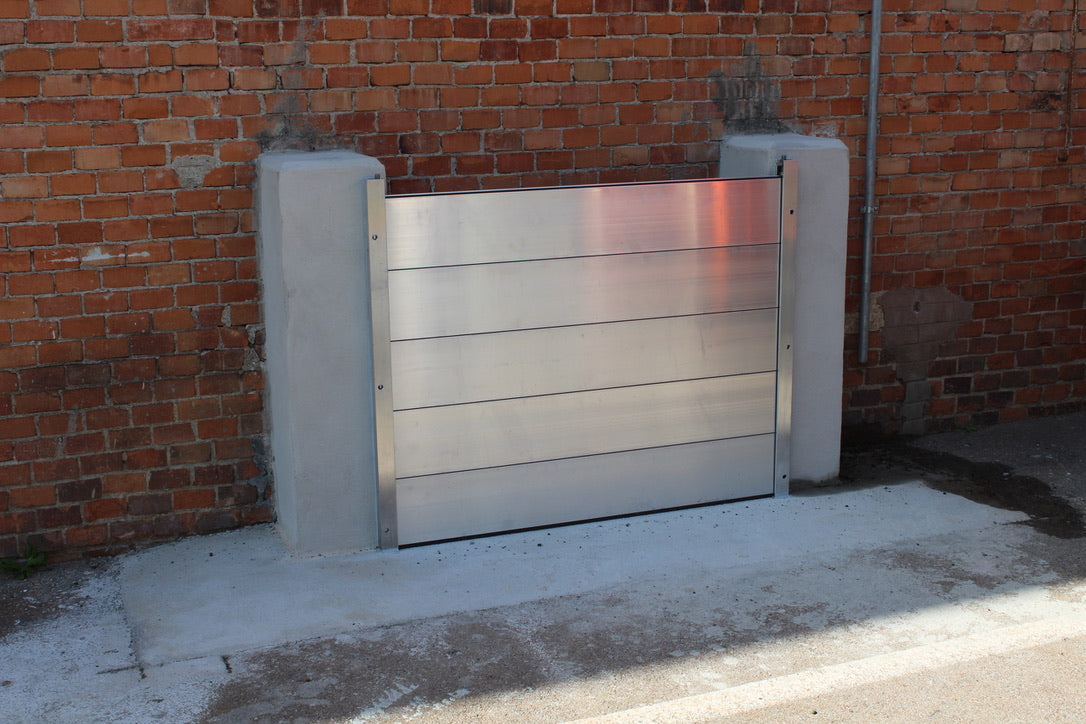

The IBS SL25 flood barrier range is perfect for protecting pedestrian door openings in Domestic and Commercial properties. Lightweight, cost effective flood protection for those customers that require simple operation and easy handling and storage.
This system works to a maximum flood height of up to 1 metre and and a maximum width of up to 2 metres.
The SL25 also comes with option of adding end post cover plates. The cover plates offer extra security for the seals against UV damage and vandalism for when the barrier is not deployed, as well as being more aesthetically pleasing.
Specification
Specification
Material:
- Dam Beams - EN AW 6063 T66 Aluminium
- End Posts - EN AW 6005 T6 Aluminium
- End Post Covers - EN AW 6063 Aluminium
- Seals - EPDM - UV resistant
- Ground Seals - PE/PU
- Pressing Tools - SS304
- Fixings - A2
- Sealant - Mastic
Finish:
- Self Colour Aluminium, Mill Finish
- Sealant Colour; Grey
Warranty:
- 2 year component warranty, active from date of order - View standard warranty document here
Reviews
Reviews
BARRIER ORDERING GUIDE
Measure accurately the flood protection height you require as well as the opening width of the barrier - this is what we call the "Clear Width".
You may want to take external advice when deciding on the required flood height, we cannot advise on which flood protection height you need to cover.

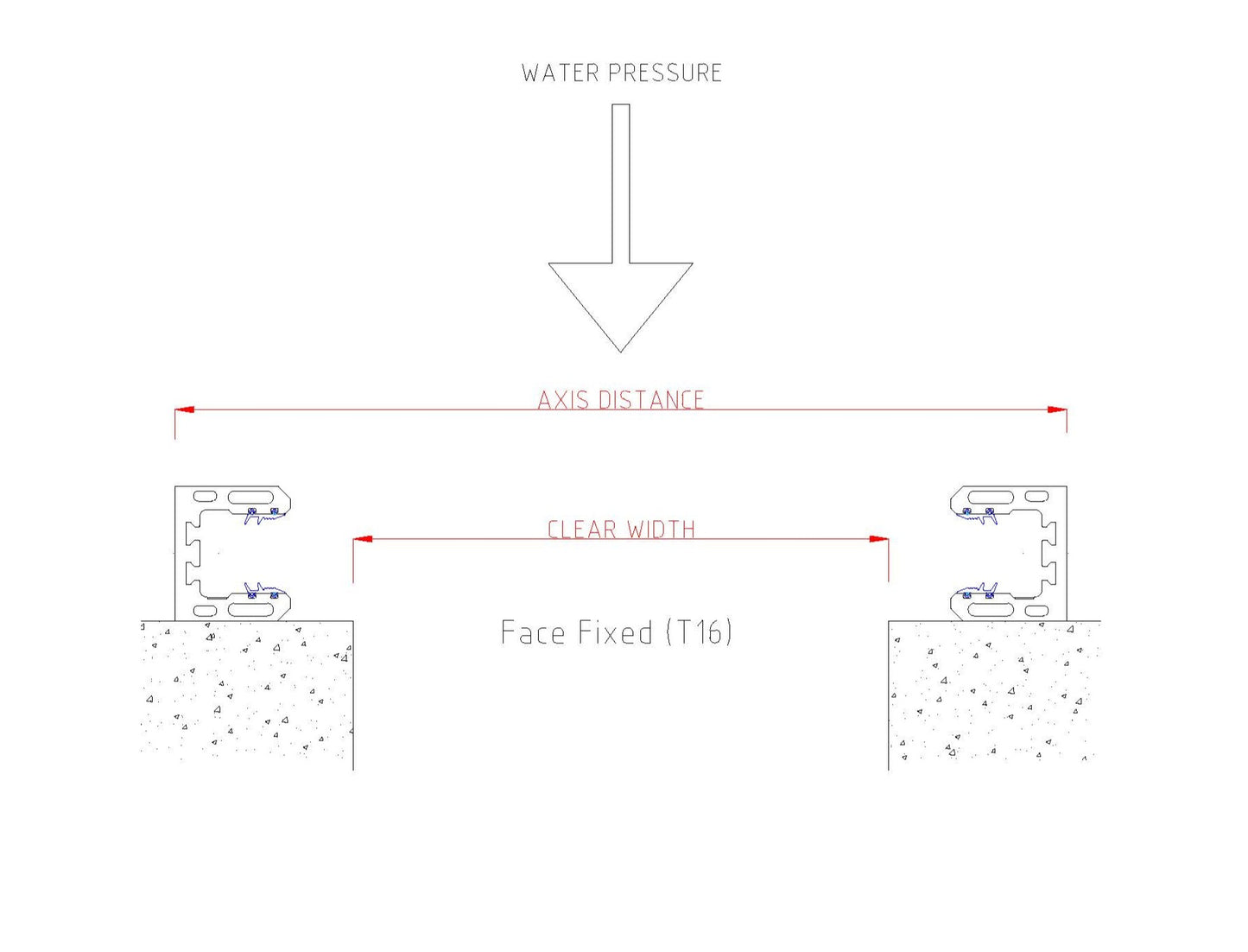

The clear width should be measured from wall to wall of the opening you are looking to protect. These measurements are crucial to ensure that the barrier you order is suitable and will fit your requirements.
Purchase Process:
1: Select the appropriate flood height required.
2: Select the barrier width range which is within your requirements.
Please note not every width option is available for every flood height - please read the description on the page for your particular chosen product which shows the range of heights and widths available for that product.
3: Input the accurate clear width opening - you will not be able to add the barrier to your basket without this information.
