B100 - Face Fixed Flood Barrier System (T16)
All orders include pressing tools and allen key for operation and sealant and fixings for installation - PLEASE NOTE THAT FIXINGS ARE FOR FULL BRICK OR CONCRETE ONLY - Also included will be 1 set of extracting tools per barrier type, per order.
Please ensure the clear width measurement is accurate as this will be the basis on which your barrier is manufactured - Please view the barrier ordering guide below before proceeding
Description
Description

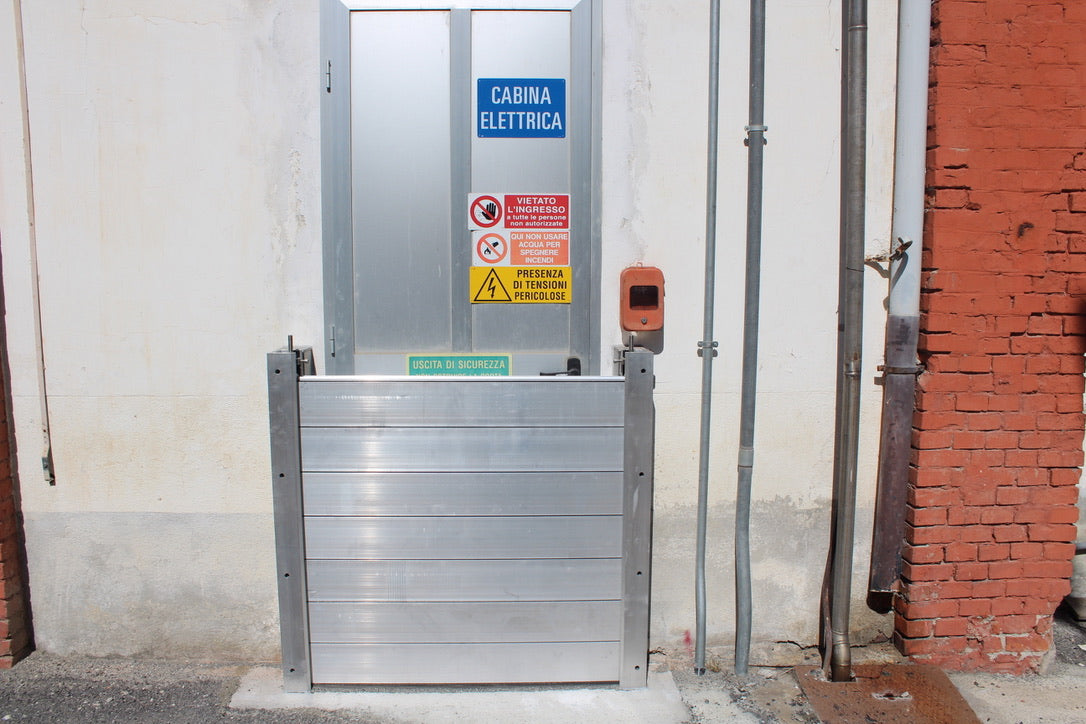

The IBS B100 Demountable Barrier System is ideal for larger opening spans where it is not practical to have an intermediate post. Although available in large spans, the dam beams are still relatively light weight with a 4mtr. dam beam coming in just over 20Kg. This is the ultimate single span large scale demountable barrier available anywhere on the market.
This system works up to a maximum flood height as per below:
- Up to 1.0 mtr high - Maximum width = 4 mtr
- Up to 1.2 mtr high - Maximum width = 3.75 mtr
- Up to 1.6 mtr high - Maximum width = 3.25 mtr
- Up to 2.0 mtr high - Maximum width = 3 mtr
The B100 also comes with option of adding end post cover plates. The cover plates offer extra security for the seals against UV damage and vandalism for when the barrier is not deployed, as well as being more aesthetically pleasing.
Specification
Specification
Material:

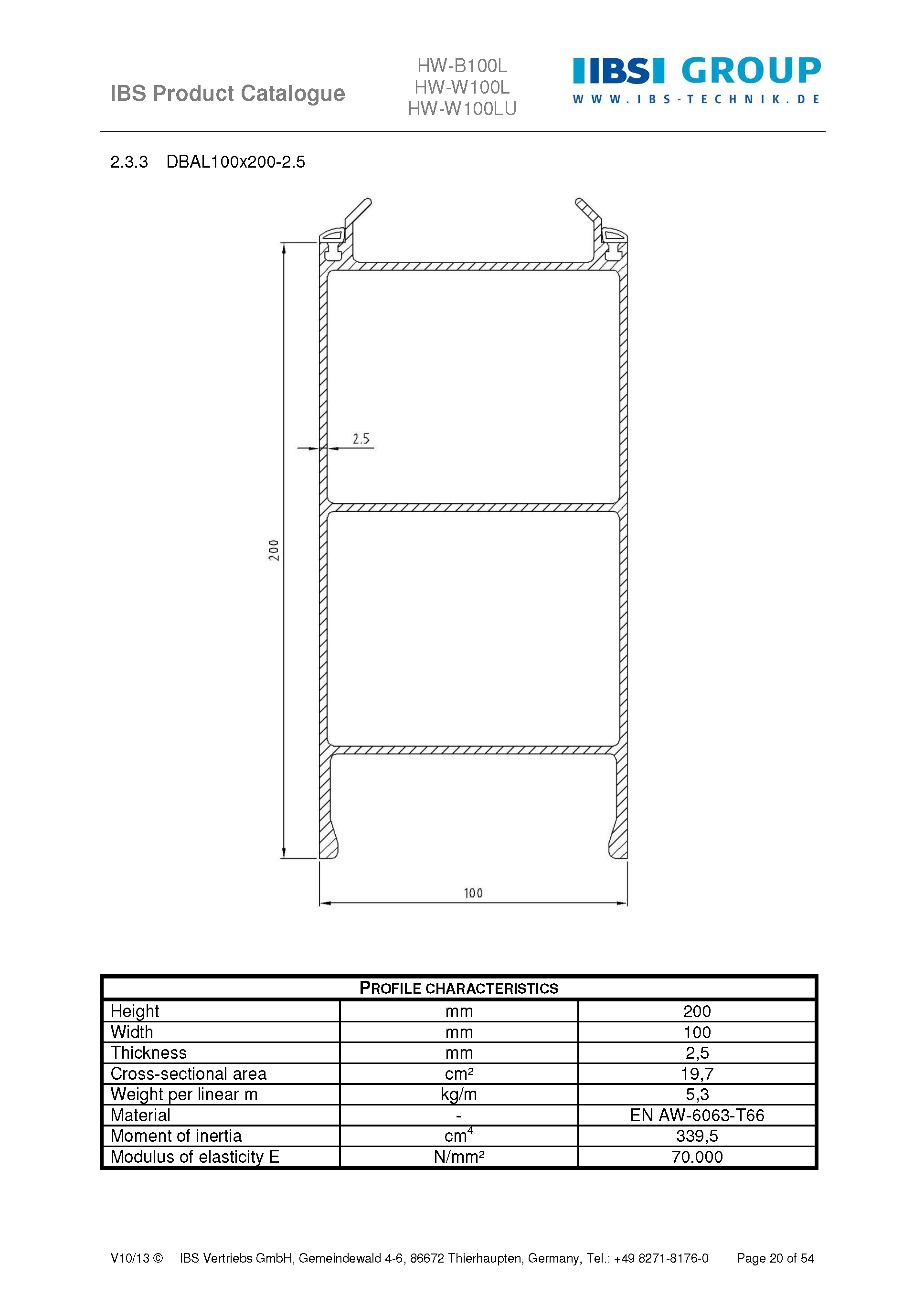

- Dam Beams - EN AW 6063 T66 Aluminium

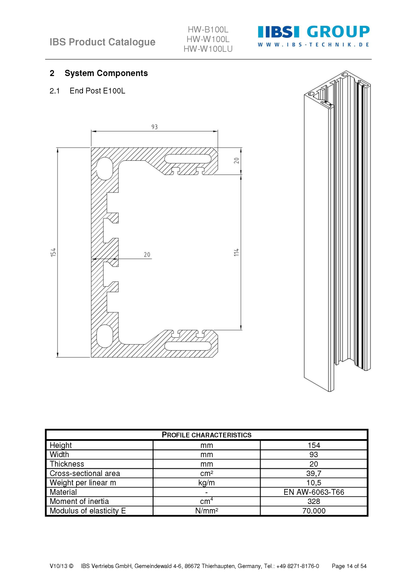

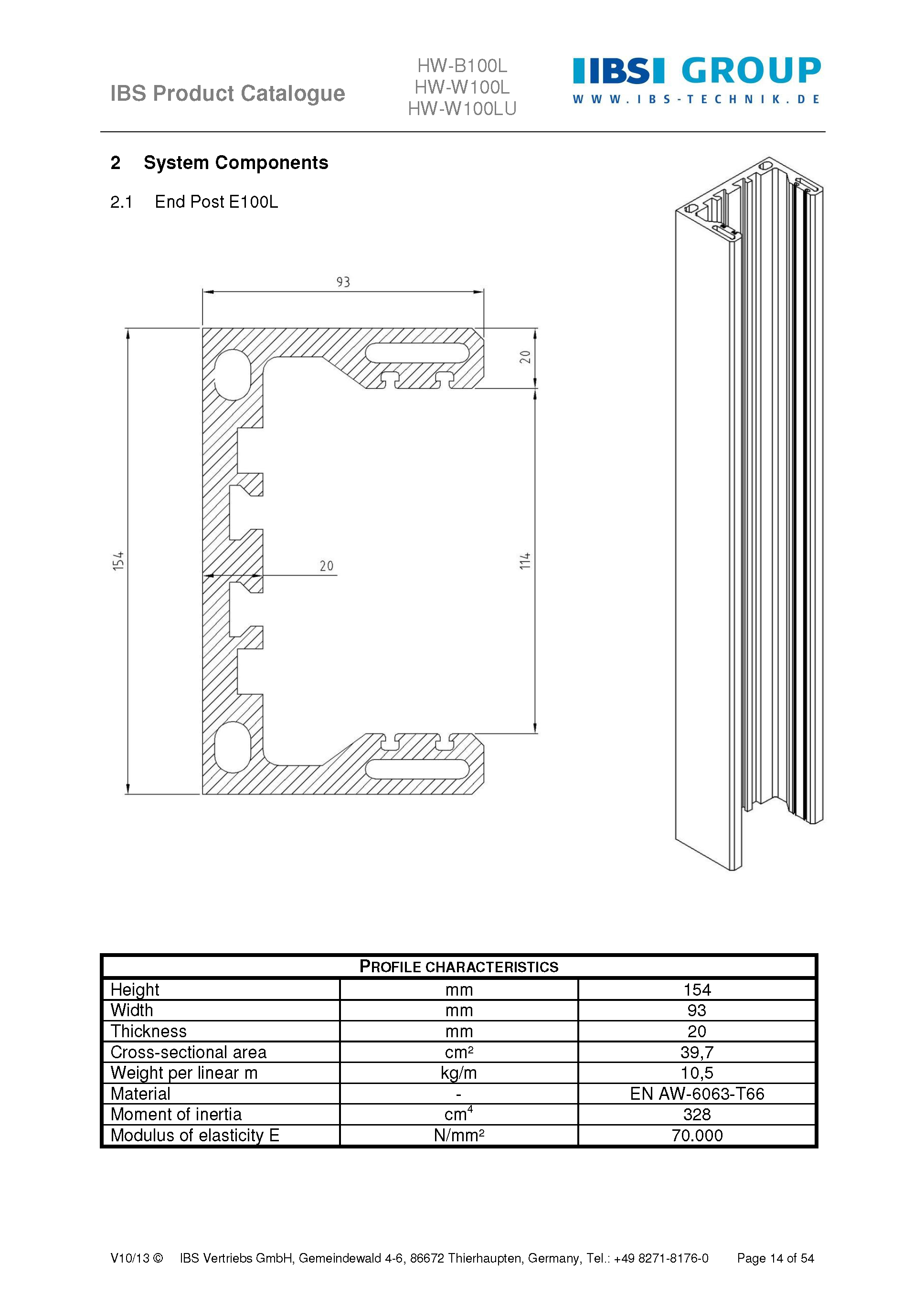

- End Posts - EN AW 6005 T6 Aluminium
- End Post Covers - SS304 Stainless Steel
- Seals - EPDM - UV resistant
- Ground Seals - PE/PU

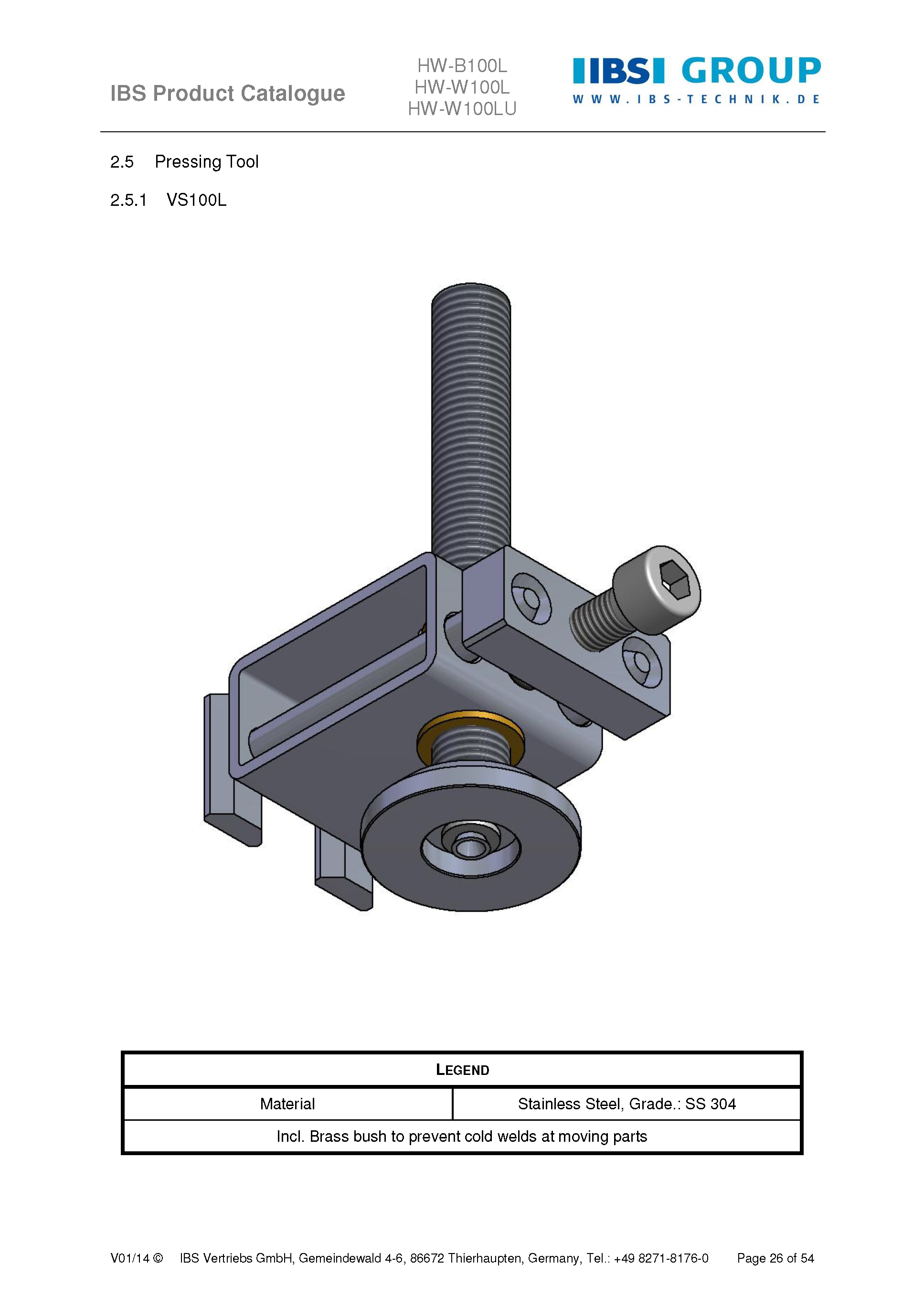

- Pressing Tools - SS304
- Fixings - A2
- Sealant - Mastic
Finish:
- Self Colour Aluminium, Mill Finish
- Sealant Colour; Grey
Warranty:
- 2 year component warranty, active from date of order - View standard warranty document here
Reviews
Reviews
Barrier Ordering Guide

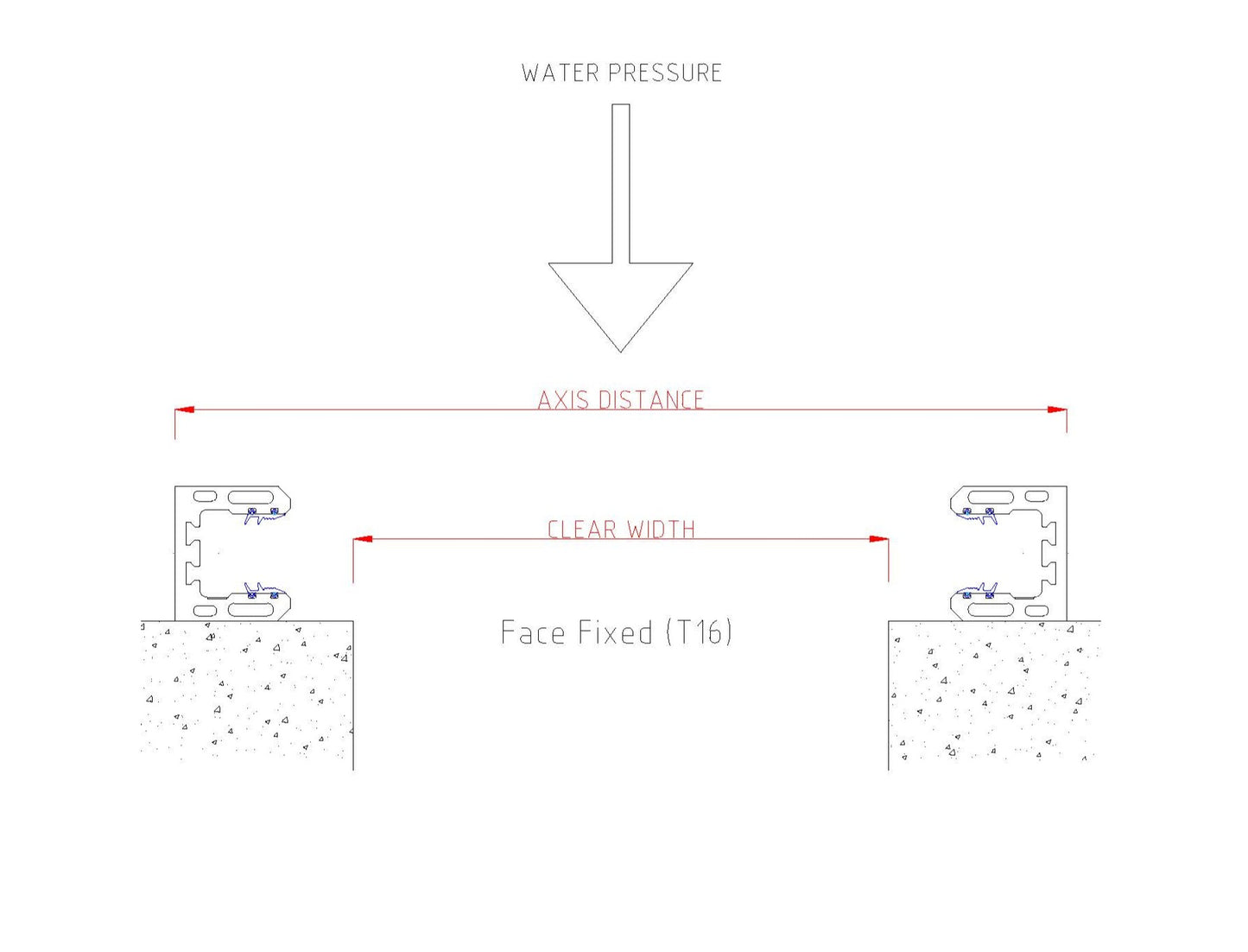

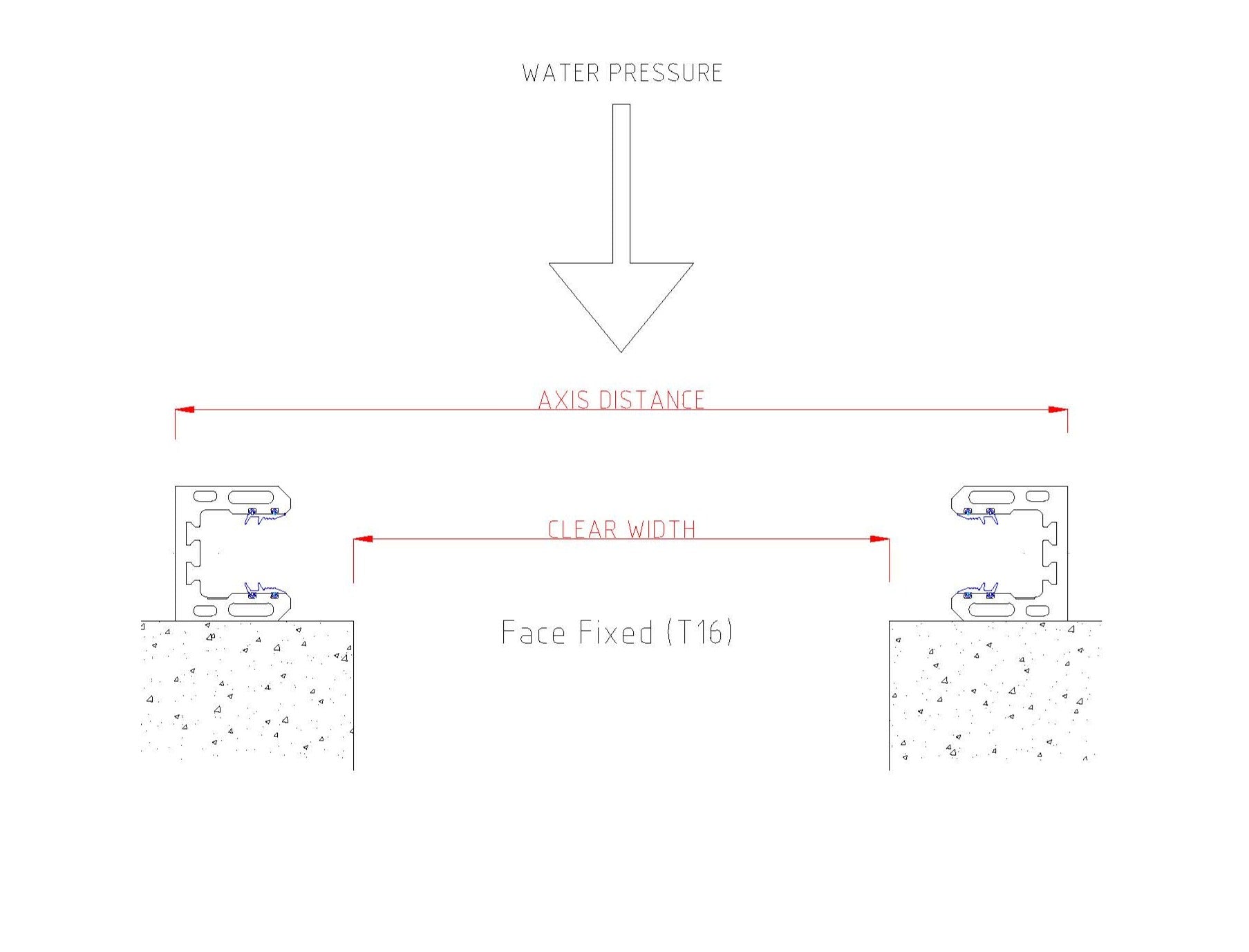

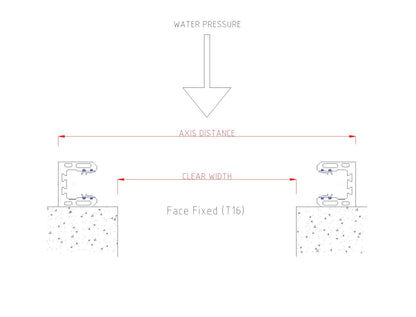

Measure accurately the flood protection height you require as well as the opening width of the barrier - this is what we call the "Clear Width".
You may want to take external advice when deciding on the required flood height, we cannot advise on which flood protection height you need to cover.
The clear width should be measured from wall to wall of the opening you are looking to protect. These measurements are crucial to ensure that the barrier you order is suitable and will fit your requirements.
Purchase Process:
1: Select the appropriate flood height required.
2: Select the barrier width range which is within your requirements.
Please note not every width option is available for every flood height - please read the description on the page for your particular chosen product which shows the range of heights and widths available for that product.
3: Input the accurate clear width opening - you will not be able to add the barrier to your basket without this information.
